16-in / 8-out custom time tagger board

A Nexatom-designed custom board for multi-channel timing workflows that need 16 input channels and 8 output channels.

Discuss this board All time taggers
Nexatom 16 input 8 output custom time tagger board top view

Hardware overview

The 16-in / 8-out board is a custom Nexatom time-tagging board for multi-channel input and synchronized output systems. The board layout includes top-side signal-conditioning electronics and a connector-side RF interface.

Top view of Nexatom 16 input 8 output time tagger PCB
Top-side view with Nexatom PCB silkscreen.

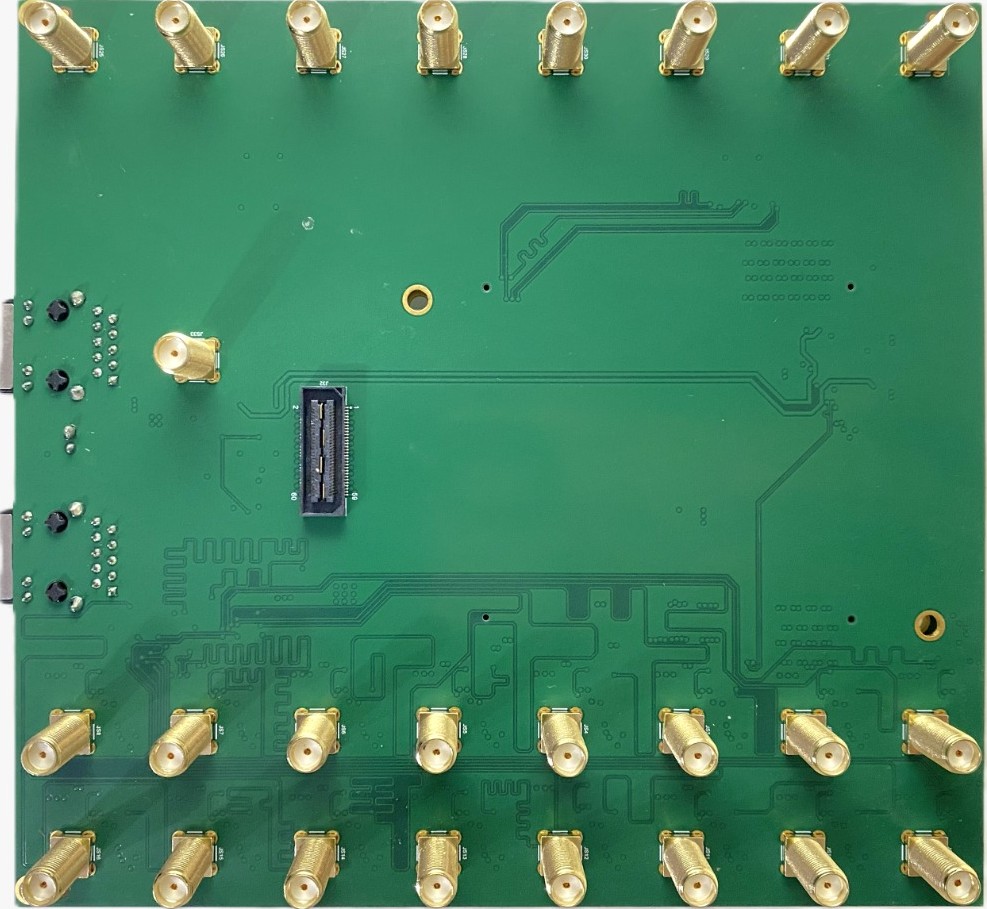

Bottom view of Nexatom 16 input 8 output time tagger PCB connectors
Connector-side view of the custom board.

Configuration

Variant16 input / 8 output custom time tagger board
Use caseCustom board for 16-input, 8-output timing systems
IntegrationContact Nexatom for software and system integration details.
