32-channel time tagger board

A 32-channel, 10 ps class Nexatom-designed board for high-channel-count event timing and custom instrumentation workflows.

Discuss this board All time taggers

Nexatom 32-channel time tagger board top view

Hardware overview

The 32-channel board is a high-channel-count Nexatom time-tagging board for event timing and custom instrumentation systems. The board layout combines repeated channel electronics with a dense SMA connector interface.

Top view of Nexatom 32-channel time tagger PCB — Top-side view with Nexatom PCB silkscreen.

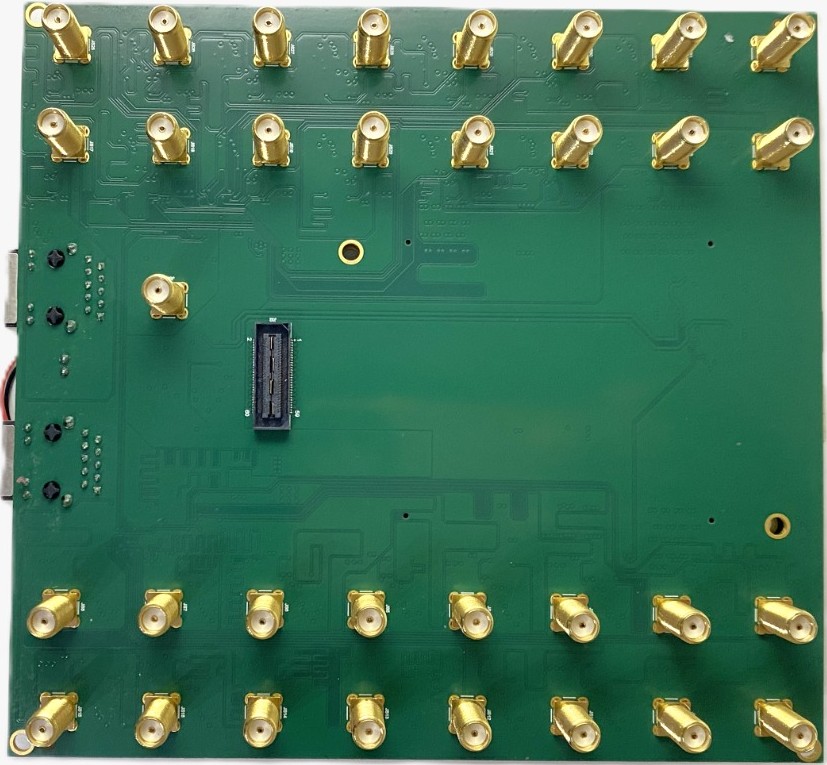

Bottom view of Nexatom 32-channel time tagger PCB connectors — Connector-side view of the 32-channel board.

Configuration

Variant	32-channel, 10 ps class time tagger board
Use case	Custom board for high-channel-count timing systems
Integration	Contact Nexatom for software and system integration details.
